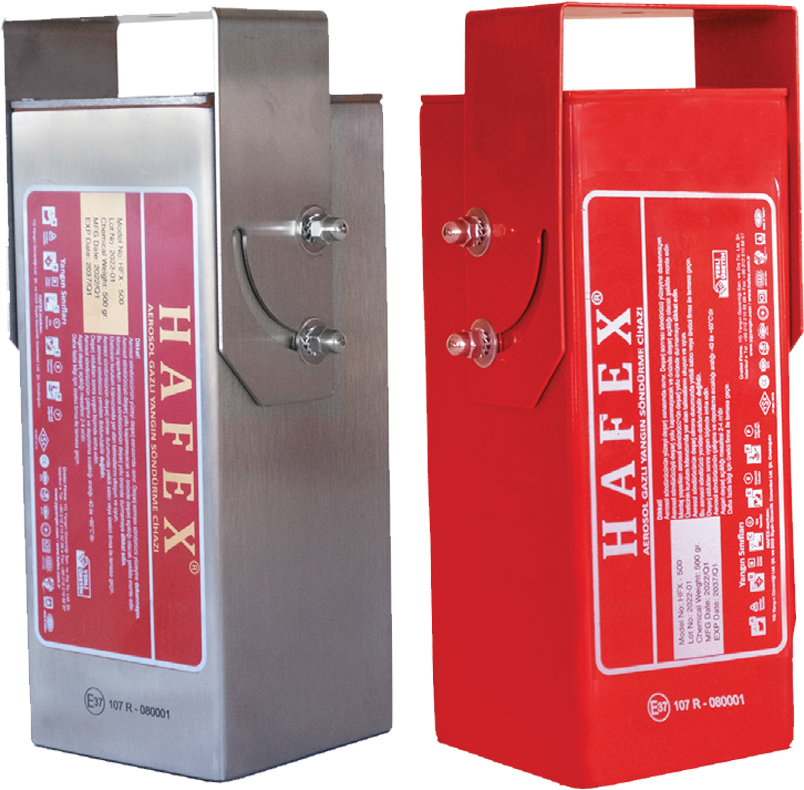

HFX-500S
- Ingredient: S (Strontium Nitrate Based)
- Gross Weight: 3930 gr. ±%3
- Ingredient Weight: 500 gr.
- Dimensions (mm): 100 (W) x 100 (W) x 243 (H)
- Suitable Fire Classes: NFPA 10: A,B,C (Electrical Equipment) EN 2: A,B,C,F and Electrical Fires
New, Clean and Ecological
AEROSOL FIRE EXTINGUISHING TECHNOLOGY
There is a brand new product among the new generation fire extinguishers that can be used to create effective fire protection systems. Meet our aerosol fire extinguishers that have a strong fire extinguishing performance, are completely environmentally friendly, economical, contain potassium salts in solid form, are harmless to health, and can be used without the need for pressurized containers and full sealing.
If we want to give a brief definition of the word aerosol; we can say that it is a multiphase system formed by the dispersion of very small solid or liquid particles, smaller than 10 microns, in a gas medium. This multiphase system remains suspended in the volume it is in and fills that volume for very long periods of time without collapsing. Aerosol fire extinguishers contain solid material compositions that are basically produced using alkali metal salts in solid form and various auxiliary substances and compressed into tablets within their metal carrier bodies. In the event of a fire, these solid composition tablets inside the aerosol extinguishers are activated automatically by the fire detection system or manually by the trigger on the extinguisher and a redox (reduction-oxidation) reaction begins within the tablet composition. The composition that forms the structure of the tablets, as a result of this reaction, produces a multi-phase fog cloud with fire-extinguishing properties, containing potassium carbonate and bicarbonates (average size of 2 microns), water vapor, carbon dioxide and dense nitrogen. This multi-phase fog cloud intervenes in the fire both physically (cooling effect) and chemically (binding to the free radicals, which are the products of the fire reaction, and removing them from the reaction), extinguishing the fire quickly and very effectively. Aerosol fire extinguishers are the most effective and cost-effective alternative to Novec 1230 and FM200 extinguishing systems, used instead of Halon gas extinguishers.
| Feature | Detail |
|---|---|
| Model | HFX-500S |
| Component | S (Strontium Nitrate Based) |
| Gross weight | 3930 gr. ±%3 |
| Component Weight | 500 grams. |
| Dimensions (mm) | 100(W) x 100(W) x 243(H) |
| Discharge Time | 6-8 Seconds |
| Activation Method | Electrical or Thermal (Optional) |
| Suitable Fire Classes | NFPA 10: A,B,C (Electrical Equipment) EN 2: A,B,C,F and Electrical Fires |
Fire Classes in Which Aerosol Fire Extinguishers Are Effective:
Aerosol fire extinguishers are effectively used in the following classes of fire in a closed environment:
- Class A Fires: Fires of combustible solid organic materials such as wood, coal, paper, grass, textiles, plastic and similar materials.
- Class B Fires: Fires involving liquid flammable materials such as gasoline, diesel, fuel oil, mineral oils, paint, varnish, thinner, alcohol, acetone and glue.
- Class C Fires: Fires of flammable gases such as LPG (liquefied petroleum gas), propane, natural gas, methane, hydrogen, acetylene and fires of gaseous materials liquefied under pressure.
- Electrical and Electronic Equipment Fires: Fires occurring in electrical and electronic equipment, transformers, electrical distribution systems and panels, computer and data processing system cabinets, and telecommunication devices.
Application Areas
Transformers, main switchgear rooms, cable tunnels and ducts, electrical panels and cabinets, power distribution facilities, generator turbines, etc.
Server rooms and cabinets, data storage and data processing areas, GSM base stations and switchboards, radio link stations, etc.
Engine rooms and cabins, cargo holds, speedboats, super yachts, sailboats, tugboats, control rooms, etc.
Engine rooms and cabins, cargo holds, speedboats, super yachts, sailboats, tugboats, control rooms, etc.
Engine cabins of mining vehicles, trucks, lorries, urban and intercity buses and minibuses, etc. According to the United Nations decision, Fire Extinguishing Systems to be used in buses have been made mandatory and the requirement for fire systems to have UNECE R107 certification has been introduced. TSE has documented the first and only R107 certification by giving it to HAFEX Hybrid Aerosol Extinguishing Systems.
Machinery and equipment used in factories, CNC lathes, milling machines, automation control and power distribution panels, generator and battery rooms, etc.
Pump-valve stations and rooms, machinery areas, petrochemical and gas pipeline systems, control and command rooms, etc.
Locomotives, wagons, stations, command and control rooms, repair and maintenance workshops, signaling and navigation control systems, etc.
Certificates
